Data analysis

Delta performs data analysis by executing data analysis kernels on PEP-3148 style executors to operate on data chunks. Here we introduce the implemented abstractions to seamlessly perform streaming data analysis in an HPC environment.

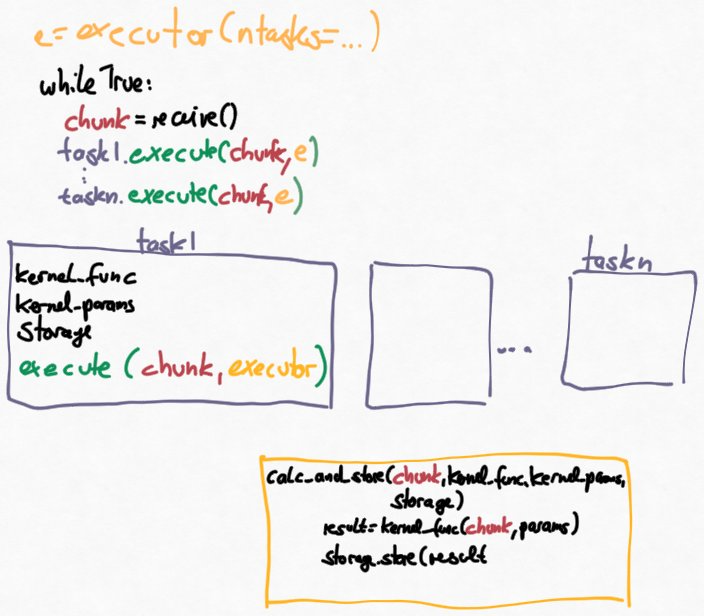

Illustration of the implemented launch mechanism for data analysis tasks

The figure above illustrates the layers of the abstracted execution mechanism for data analysis tasks. The main function instantiates

• An PEP-3148 compatible executor which will be used to execute analysis kernels.

• A list of n analysis.task_base.task_base objects. Each task is configured as dictated in the configuration file.

In the receive loop, all instantiated tasks are executed on the executor, using the just received data chunk. Internally, the task objects execute a function analysis.task_base.calc_and_store(), with the data chunk, their kernel function, kernel parameters and the storage object on the executor. This additional level of abstraction allows to immediately store the result of the analysis kernels. That is, there is no need to await the return of executor.submit and the tasks can be launched in a fire-and-forget way. It also makes it possible to launch kernels with different call signatures while still using the same interface from the main loop.

Actual analysis tasks classes are derived from analysis.task_base.task_base() and overload analysis.task_base.task_base._get_kernel() in order to launch the desired analysis kernel

class task_derived(task_base):
    def get_kernel(self):
        return my_kernel

The implementation of analysis.task_base.task_base.execute() is similar to

class task_base():
    ...

    def execute(chunk, executor):

        _ = executor.submit(self._get_dispatch_func(),
                            self._get_kernel(),
                            self.storage,
                            chunk, **kwargs)

Since both data analysis and storage are handled by the dispatch function, the results of the future are not required in the main loop. Data analysis can therefore be performed in a “fire-and-forget” way on the compute resource.

By default analysis.task_base.task_base._get_dispatch_func() returns analysis.task_base.calc_and_store(). The relevant portion of this function are first, calling the data kernel and second, storing the result once the kernel call has returned.

def calc_and_store(kernel, storage, chunk, kwargs, info_dict):
    result = kernel(chunk.data, kwargs, chunk.params)
    storage.store_data(result, info_dict)


class task_base():
    def _get_dispatch_func():
        return calc_and_store

Derived classes may overload analysis.task_base.task_base._get_dispatch_func() to accomedate custom kernel call signatures.
